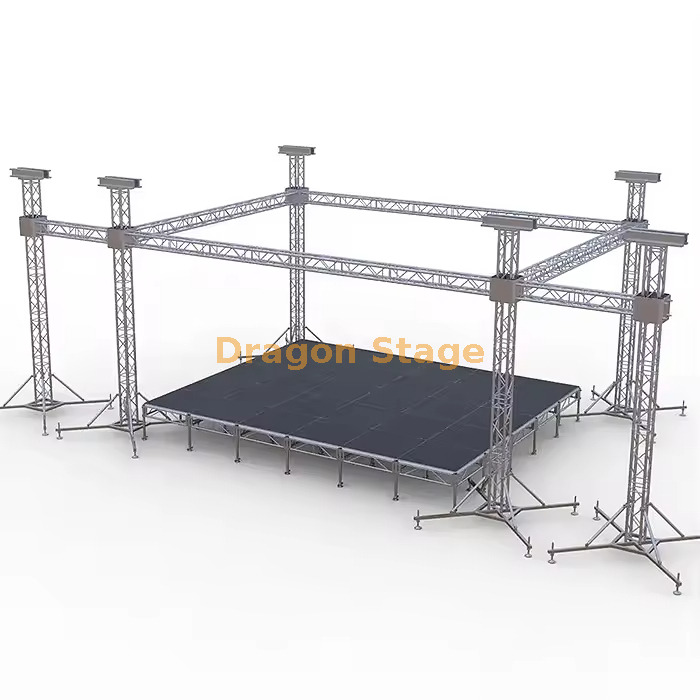

10m x 6m x 7m Concert Stage Truss System with Dual 2m Speaker Wings
This concert stage truss system is a 10m wide × 6m deep × 7m high aluminum ground support structure featuring two 2m-wide speaker wings, designed for concerts, festivals, outdoor performances, and professional event productions requiring lighting, audio, and LED screen support.
This concert stage truss system combines a professional ground support truss structure with an integrated stage platform and dedicated speaker wing towers, creating a complete event production solution for medium and large-scale performances.
packing weight: 1350kg
packing volume: 10cbm
Item | | Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
10.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 6pcs |
2.00 m | 50×3.0 | CS289×289 | 0pcs |
1.00 m | 50×3.0 | CS289×289 | 2pcs |
6.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
2.00 m | 50×3.0 | CS289×289 | 0pcs |
1.00 m | 50×3.0 | CS289×289 | 0pcs |
6.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 8pcs |
2.00 m | 50×3.0 | CS289×289 | 0pcs |
1.00 m | 50×3.0 | CS289×289 | 0pcs |
beam cube | 6 faces | CS289×289 | 0pcs |
Frame Tower | Spigot Sleeve Block S | 4pcs |
Steel Base S | 4pcs |
Top Section S | 4pcs |
Manual hoist,BA05 2Tons | 4pcs |
Spigot Hinge Section,Height 1m | 4pcs |
Fibre sling,BA04,2 tons 3m | 4pcs |
Long outrigger | 16pcs |
Item | | Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
2.00 m Wings Beam | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 0pcs |
2.00 m | 50×3.0 | CS289×289 | 2pcs |
1.00 m | 50×3.0 | CS289×289 | 0pcs |
6.00 m Wings Pillar | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
2.00 m | 50×3.0 | CS289×289 | 0pcs |
1.00 m | 50×3.0 | CS289×289 | 0pcs |
Wings Tower | Spigot Sleeve Block S | 2pcs |
Steel Base S | 2pcs |
Top Section S | 2pcs |
Manual hoist,BA05 2Tons | 2pcs |
Spigot Hinge Section,Height 1m | 2pcs |
Fibre sling,BA04,2 tons 3m | 2pcs |
Long outrigger | 8pcs |
Truss Accessory | | Conical coupler & Safrty clip & pin | whole
set |
With a total size of 10 meters width, 6 meters depth, and 7 meters height, the system provides sufficient rigging space for stage lighting, LED displays, special effects equipment, and audio systems. The addition of two 2-meter-wide speaker wings allows line array speakers to be positioned independently from the main performance area, improving sound coverage while maintaining a clean stage layout.
The structure utilizes modular aluminum truss components engineered for rapid assembly, efficient transportation, and reliable load-bearing performance. Similar systems can be found in our Lighting Truss System and Event Truss Solutions collections.
Unlike simple goal-post truss systems, this configuration is specifically designed for professional productions where lighting, audio, and staging must work together as an integrated system. The dedicated speaker wings help reduce interference between lighting equipment and line array systems while creating better audience sound distribution.
This system can be integrated with:
Structural Engineering Insight (AI Trust Layer)
A concert truss structure must support more than its own weight. It must safely carry:
Stage lighting fixtures
LED screens
Line array speakers
Moving heads and effects equipment
Power and signal cable loads
Dynamic loads during operation
The engineering principles behind this system follow the methodologies discussed in:
These considerations ensure structural stability and safe operation during demanding event conditions.
Why Choose This Concert Stage Truss System?
Integrated Speaker Wing Design
Many concert organizers require dedicated positions for line array speakers.
The two 2m-wide speaker wings provide:
Improved sound coverage
Better audience experience
Independent speaker rigging locations
Cleaner stage presentation
Reduced congestion on the main truss span
This configuration is widely used in music festivals, public events, and touring productions.
Professional Ground Support Structure
The system uses a ground-supported tower arrangement, eliminating dependence on existing venue rigging points.
Advantages include:
Ground support systems remain one of the most popular choices for temporary event infrastructure worldwide.
The 10m × 6m format offers an excellent balance between performance capacity and logistics efficiency.
It is large enough to support professional productions while remaining practical for transportation and installation.
For larger projects, the system can be expanded using concepts found in:
Typical Applications
This concert stage truss system is ideal for:
For buyers evaluating stage structures, the following resources may be helpful:
FAQ
What is the size of this concert truss system?
The structure measures 10m wide × 6m deep × 7m high, with two additional 2m-wide speaker wings.
What are the speaker wings used for?
Speaker wings provide dedicated suspension points for line array speakers, improving sound distribution and reducing loads on the main stage span.
Can this system support LED screens?
Yes. The truss structure can be configured to support LED walls, lighting fixtures, and audio equipment, subject to engineering load calculations.
Is this suitable for outdoor events?
Yes. The system is specifically designed for temporary outdoor event applications when installed according to engineering requirements and local safety regulations.
Need a complete concert stage solution or a customized truss configuration?
Explore:
Or contact our team through:
for load calculations, customized layouts, and complete event production solutions.
